Produktbeskrivning

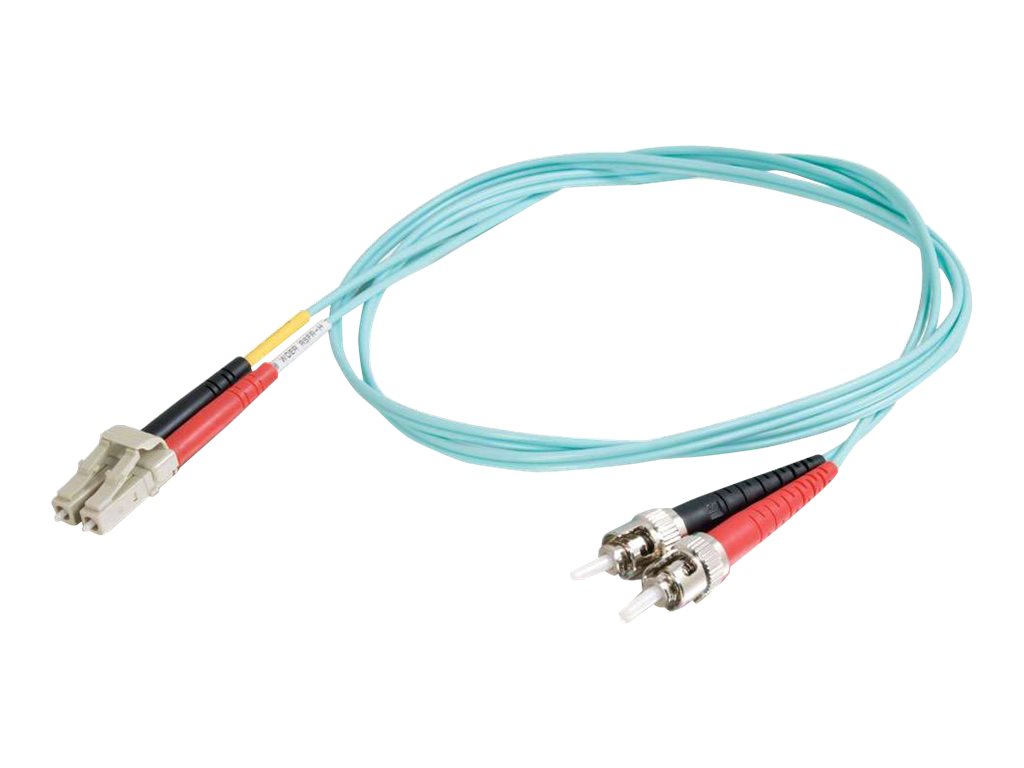

This OM3 Duplex Multimode Fibre Optic Cable is ideal for connecting 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10 gigabit network connections. This cable has a LSZH jacket which protects from toxic and corrosive gases in poorly ventilated spaces and other areas where it is most critical. This cable also provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources, and 10 Gigabit Ethernet applications.

The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures.



Egenskaper

Warranty Details
This product carries a lifetime warranty

Jacket Rating
The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures

Backwards Compatible
This cable provides backward compatibility with existing 50/125 equipment



Teknisk specifikation

Typ av nätverkskabel	Nätverkskabel - OM3
Teknik	Duplex fiberoptisk
Typ av fiberoptik	Multimode
Mantelmaterial	Low Smoke Zero Halogen (LSZH)
Antal fibrer	2
Kärna / höljets diameter	50/125 mikron
Egenskaper	Halogenfri
Längd	5 m
Färg	Havsblå

Kontaktdon	2 x ST-läge (multi-mode) - hane
Kontakt (andra änden)	2 x LC multiläge - hane

Standarder som följs	TIA/EIA-455-171A

Service och support	Begränsad livstidsgaranti

Min temperatur vid drift	-20 °C
Max temperatur vid drift	70 °C
