Produktbeskrivning
Cost-effective solution that provides higher bandwidth and transmission rates and supports longer distances with lower loss than 62.5/125 fibre. Specifically designed for use with today's narrower aperture components, this cable is fully compatible with multimode applications.
The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures.
This reduces the amount of harmful toxic and corrosive gases that cabling made with plastic materials would otherwise emit into the air during combustion. This construction makes LSZH cables ideal for use where the protection of people and equipment from harmful corrosive gases is absolutely critical.
The patented injection moulding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 50/125 multimode fibre, immune to electrical interference.
Egenskaper

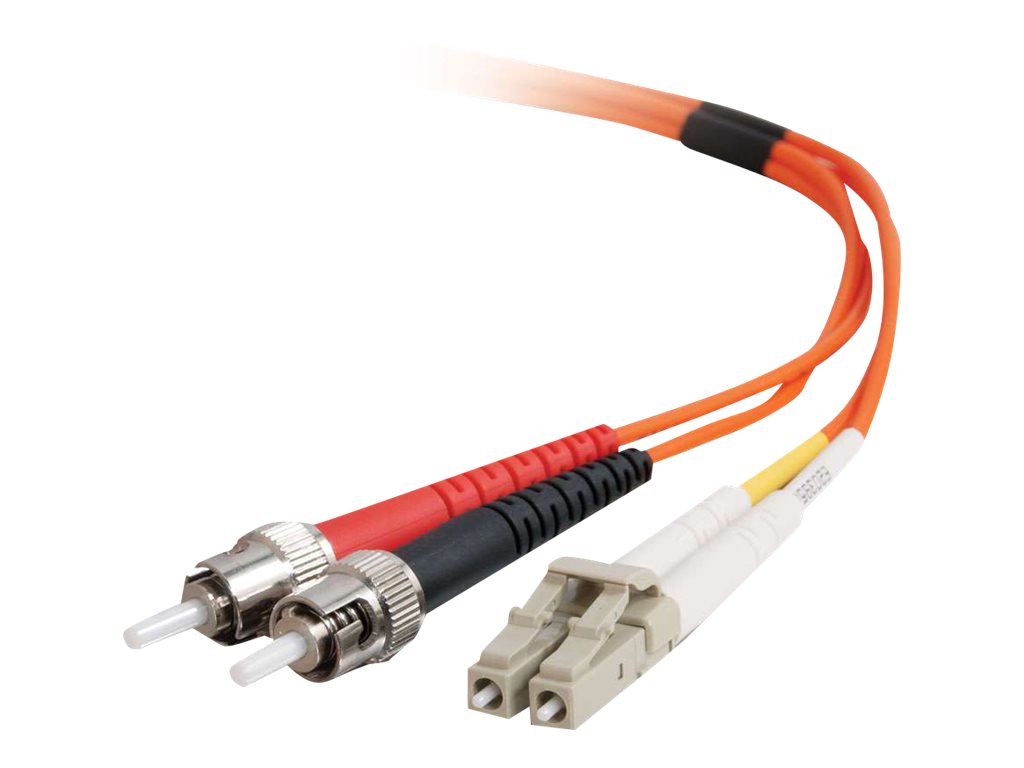

● Connector 1: (1) LC Male
● Connector 2: (1) ST Male
● Supports longer distances with lower loss than 62.5/125 fibre for Fast Ethernet, fibre channel, ATM and Gigabit Ethernet applications where protection from toxic and corrosive gases is critical
● Each cable is 100% optically inspected and tested for insertion loss before you receive it.
● Lifetime warranty
● Low Smoke Zero Halogen (LSZH / LS0H) jacket
Teknisk specifikation
Allmänt
| Typ av nätverkskabel | Nätverkskabel - OM2 |
|---|
| Teknik | Duplex fiberoptisk |
|---|
| Typ av fiberoptik | Multimode |
|---|
| Mantelmaterial | Low Smoke Zero Halogen (LSZH) |
|---|
| Antal fibrer | 2 |
|---|
| Kärna / höljets diameter | 50/125 mikron |
|---|
| Egenskaper | Halogenfri |
|---|
| Längd | 1 m |
|---|
| Färg | Orange |
|---|
Anslutning
| Kontaktdon | 2 x ST-läge (multi-mode) - hane |
|---|
| Kontakt (andra änden) | 2 x LC multiläge - hane |
|---|
Diverse
| Standarder som följs | TIA/EIA-455-171A |
|---|
Tillverkarens garanti
| Service och support | Begränsad livstidsgaranti |
|---|
Miljöparametrar
| Min temperatur vid drift | -20 °C |
|---|
| Max temperatur vid drift | 70 °C |
|---|
