Produktbeskrivning

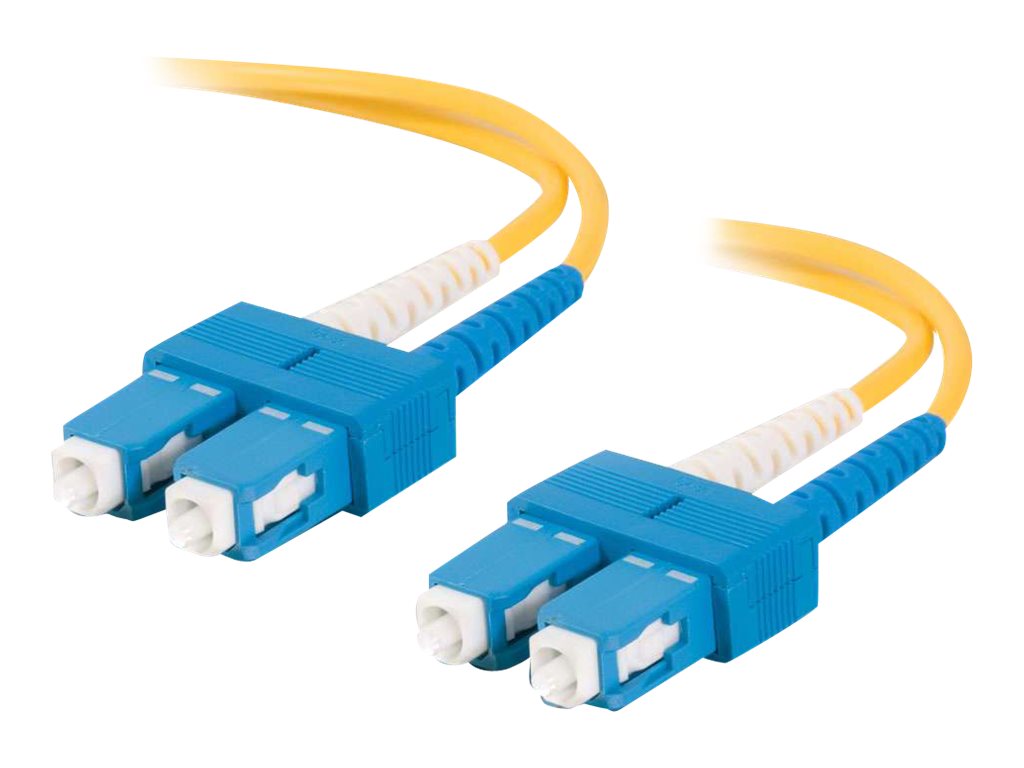

Cost-effective solution that provides high bandwidth and transmission rates over longer distances. With SC to SC termination, this high quality fibre optic patch cable is specifically designed for Gigabit Ethernet applications.

The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures.

This reduces the amount of harmful toxic and corrosive gases that cabling made with plastic materials would otherwise emit into the air during combustion. This construction makes LSZH cables ideal for use where the protection of people and equipment from harmful corrosive gases is absolutely critical.

The patented injection moulding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.

Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 Single-mode fibre, immune to electrical interference.



Egenskaper

● Connector 1: (1) SC Male
● Connector 2: (1) SC Male
● 9/125 micron cable for Gigabit Ethernet applications where protection from toxic and corrosive gases is critical.
● Lifetime warranty
● Low Smoke Zero Halogen (LSZH / LS0H) jacket
● Each cable is 100% optically inspected and tested for insertion loss before you receive it.



Teknisk specifikation

Typ av nätverkskabel	Patch-kabel - OS1
Teknik	Duplex fiberoptisk
Typ av fiberoptik	Singlemode
Mantelmaterial	Low Smoke Zero Halogen (LSZH)
Antal fibrer	2
Kärna / höljets diameter	9 / 125 mikrometer
Egenskaper	Halogenfri
Längd	1 m
Färg	Gul

Kontaktdon	2 x SC enkelläge - hane
Kontakt (andra änden)	2 x SC enkelläge - hane

Standarder som följs	TIA/EIA-455-171A

Service och support	Begränsad livstidsgaranti

Min temperatur vid drift	-20 °C
Max temperatur vid drift	70 °C
