Produktbeskrivning

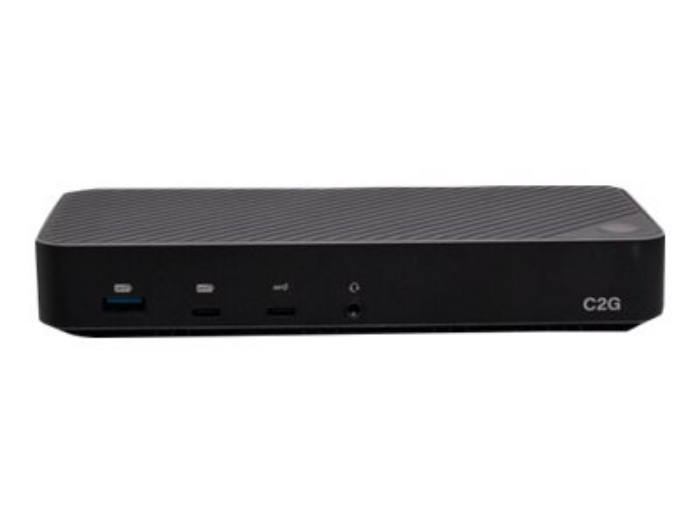

The USB-C Hybrid Triple 4K Display Docking Station with DisplayLink and DP Alt Mode transforms USB-C enabled laptops into total desktop solutions through a single USB-C connection - allowing them to have more video outputs, more connected peripherals, and quick data transfers, all while keeping the laptop charged and ready to go.
This docking station supports crisp, high-definition images and video when connecting one, two, or three 4K displays. When connecting to the HDMI port labeled "DP Alt Mode", be sure that the connected laptop supports DP alt mode. The front USB-A and USB-C 3.2 Gen 2 ports support BC 1.2 for quick mobile device charging and data transferring up to 10Gbps, while the two USB-A Gen 1 ports on the rear support 5 Gbps data transfers. The Ethernet port allows for reliable Internet connectivity with file transfer speeds up to 1000 Mbps.
The included 130 W power supply keeps the connected laptop charged and ready to go with 100 W power delivery while supporting connected devices, such as keyboards, mice, portable hard drives, and other peripherals. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. Laptops or tablets that require more than 100 W may charge at lower speeds.
The USB-C Hybrid Triple 4K Display Docking Station maximizes desktop space while providing a single cable solution for Windows, Mac OS devices (including M1 and M1X), and Chrome OS.
Teknisk specifikation
Allmänt
| Typ av produkt | Dockningsstation |
|---|
| Bredd | 19.1 cm |
|---|
| Djup | 8.5 cm |
|---|
| Höjd | 31.8 cm |
|---|
| Färg | Svart |
|---|
Video
| Max Upplösningsinformation | 3840 x 2160 - 30 Hz (endast DisplayPort)
3840 x 2160 - 60 Hz |
|---|
Nätverk
| Datalänkprotokoll | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Expansion/Anslutning
| Gränssnitt | 2 x bildskärm / video - HDMI - 19-stifts HDMI typ A
2 x bildskärm / video - DisplayPort - 20-stifts DisplayPort
3 x USB-C - 24 pin USB-C
1 x USB-A 3.2 Gen2
1 x nätverk - 1000Base-T - RJ-45
1 x kombinerat uttag för hörlurar/mikrofon
2 x USB-A 3.2 Gen1 |
|---|
Diverse
| Inmatningsenhet | SD card reader |
|---|
| Inkluderade tillbehör | USB-C to USB-C cable (0.5m), USB-C to USB-A cable (0.5m) |
|---|
| Egenskaper | Plats för säkerhetslås (kabellås säljs separat), 100W strömleverans |
|---|
| Typ av säkerhetsplats | Kensington säkerhetsplats |
|---|
| Standarder som följs | FCC, RoHS, REACH |
|---|
Strömtillförsel
| Nätdel | Strömadapter |
|---|
| Nätspänning | AC 100-240 V |
|---|
| Effekt | 130 Watt |
|---|
Systemkrav
| Operativsystem erfordras | Apple MacOS, Microsoft Windows |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 70 °C |
|---|
