Produktbeskrivning

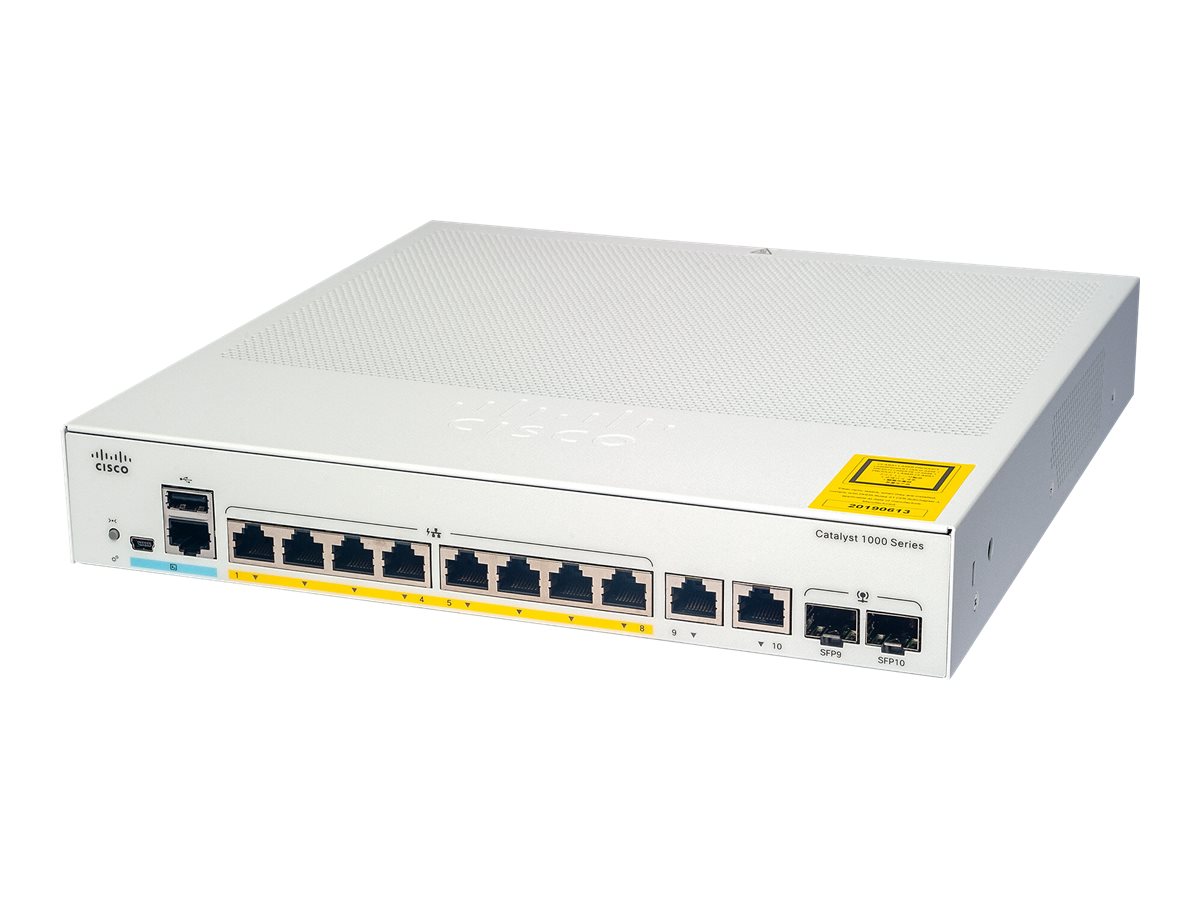

The Cisco Catalyst 1000-8P-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.



Egenskaper

HARDWARE CONFIGURATION
8 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports, 2 SFP/RJ-45 combo; Compact form factor switch with Power budget of 670W and Perpetual PoE+ support for uninterrupted power to PoE devices even in case of switch reboot

MANAGEMENT
Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool

SECURITY
Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single 'Auto-Secure' command along with 802.1x support for all connected devices

Enterprise Class Hardware
Tamper-proof switch designed with the best of Cisco's trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product

PEACE OF MIND
Enhanced limited lifetime warranty



Innehåll i förpackning

● C1000-8P-2G-L Switch, Accessory Kit, 1 printed document



Teknisk specifikation

Typ av enhet	Switch - 8 portar - Administrerad
Modell	Rackmonterbar
Undertyp	Gigabit Ethernet
Portar	4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 + 2 x kombinations-Gigabit SFP (upplänk)
PoE (Power Over Ethernet)	PoE+
PoE-budget	67 W
Prestanda	Vidarekopplingsbandbredd: 10 GB/s Switchningsbandbredd: 20 Gbps Vidarebefordringshastighet (64-byte L3-paket): 14.88 Mpps
Kapacitet	Unicast MAC-adresser: 15360 IPv4 unicast direkta rutter: 542 IPv4 unicast indirekta rutter: 256 IPv6 unicast direkta vägar: 414 IPv6 unicast indirekta vägar: 128 IPv4-routes (statisk): 16 IPv6-routes (statisk): 16 IPv4-routes (Multicast): 1024 IPv6-grupper (Multicast): 1024 IPv4/MAC säkerhets-ACE:er: 600 IPv6 säkerhets-ACE:er: 600 Aktiva VLAN: 256 VLAN ID:n: 4094 STP-instanser: 64 SPAN-sessioner: 4 MTU-L3-paket: 9198 byten
Jumbo Frame-support	10.240 byte
Nätverksprotokoll	IGMP, MLDv2, MLD, MSTP, RSTP, STP
Protokoll för administration på distans	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Verifieringsmetod	Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Funktioner	BOOTP-stöd, ARP-stöd, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp-support, sFlow, DHCP-snooping, stöd för dynamiskt trunkingprotokoll (DTP), stöd för portaggregeringsprotokoll (PAgP), stöd för ACL (Access Control List), Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fläktlös, Shaped Round Robin (SRR), LACP-support, LLDP-support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x-autentisering, stöd för DiffServ Code Point (DSCP), IGMP-filtrering, IP-källskydd, Weighted Tail Drop (WTD), SmartPort-teknologi, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopbackdetektion, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Standarder som följs	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor	X ARM: 800 MHz
RAM	512 MB
Flash-minne	256 MB
Statusindikatorer	Status

Gränssnitt	4 x 1000Base-T RJ-45 PoE+ - 15 W 4 x 1000Base-T RJ-45 2 x 1000Base-T / 1000Base-X RJ-45/SFP upplänk 1 x hantering RJ-45 1 x mini-USB Type B 1 x USB Type A

Nätdel	Intern strömförsörjning
Installerat antal	1
Nätspänning	AC 120/230 V (50 - 60 Hz)

Standarder som följs	CISPR 22 klass A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 klass A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A

Bredd	26.8 cm
Djup	32.3 cm
Höjd	4.39 cm

Service och support	Begränsad garanti - utbyte - livstid - svarstid: nästa arbetsdag Tekniskt stöd - konsultation - 90 dagar

Min temperatur vid drift	-5 °C
Max temperatur vid drift	50 °C
Luftfuktighet vid drift	5 - 90%
Min temperatur vid förvaring	-25 °C
Max temperatur vid förvaring	70 °C
Luftfuktighet vid lagring	5 - 95%
