Produktbeskrivning

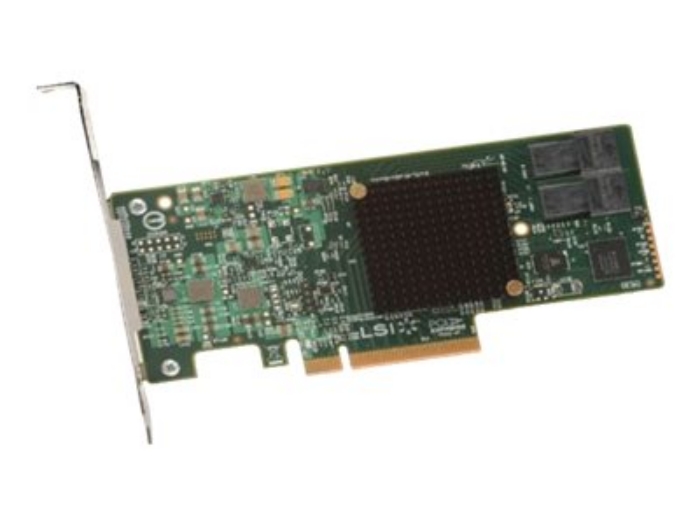

The Fujitsu PRAID CP400i SAS/SATA controller card based on the LSI SAS3008 allows latest RAID technology at affordable prices with low power consumption. The PRAID CP400i MegaRAID entry controller card offer users a straight-forward solution that includes essential RAID levels and uncomplicated configuration options. The PRAID CP400i enables to connect to combinations of SATA and SAS hard disk drives and SSD solid state drives, allowing for storage configurations that optimize cost, performance and robust data protection. The CP400i enables increased read/write performance thanks to its RAID 0, 1, 1E, 10 and 5 implementation. The RAID5 performance of CP400i is suitable for entry requirements. Higher performance is provided by PRAID EP400i and EP420i with 1GB and 2GB write back cache.



Egenskaper

● Connect up to 16 SAS/SATA devices
● Extends the PCIe data rates up to 8.0 GT/s per lane
● RAID levels 0, 1, 1E, 10, 5 for more data security
● Fully supported by PRIMERGY ServerView RAID Manager



Teknisk specifikation

Typ av enhet	Kontrollerkort (RAID) - instickskort
Värdbuss	PCIe 3.0 x8

Gränssnitt	SATA 6Gb/s / SAS 12Gb/s
Dataöverföringshastighet	12 Gbit/s
Enheter som stöds	Hårddisk, halvledarenhet
Antal kanaler	8
Max antal enheter	16
RAID-nivå	RAID 0, RAID 1, RAID 5, RAID 10, RAID 1E
Processor	LSI LSISAS3008

Gränssnitt	2 x SATA 6Gb/s / SAS 12Gb/s - 4x mini-SAS HD (SFF-8643) (intern)

Egenskaper	DDF compliant Configuration on Disk (COD), RAID Level Migration

Designat för

Fujitsu PRIMERGY CX2550 M1, CX2550 M4, CX2550 M4 liquid cooling, CX2550 M5, CX2560 M4 air cooling, CX2560 M4 liquid cooling, CX2560 M5, CX2570 M1, CX2570 M4 PCI air cooling, CX2570 M4 SXM2 liquid cooling, RX1330 M1, RX1330 M2, RX1330 M3, RX1330 M4, RX2510 M2, RX2520 M1, RX2520 M4, RX2520 M5, RX2530 M1, RX2530 M1-L, RX2530 M2, RX2530 M4, RX2530 M4 Liquid Cooling, RX2530 M5, RX2530 M5 Liquid Cooling, RX2540 M1, RX2540 M1-L, RX2540 M2, RX2540 M4, RX2540 M5, RX2560 M1, RX2560 M2, RX4770 M1, RX4770 M2, RX4770 M3, RX4770 M4, RX4770 M4 liquid cooling, RX4770 M4 Performance, TX1320 M2, TX1320 M3, TX1320 M4, TX1330 M2, TX1330 M3, TX1330 M4, TX2540 M1, TX2550 M4, TX2550 M5, TX2560 M1, TX2560 M2
