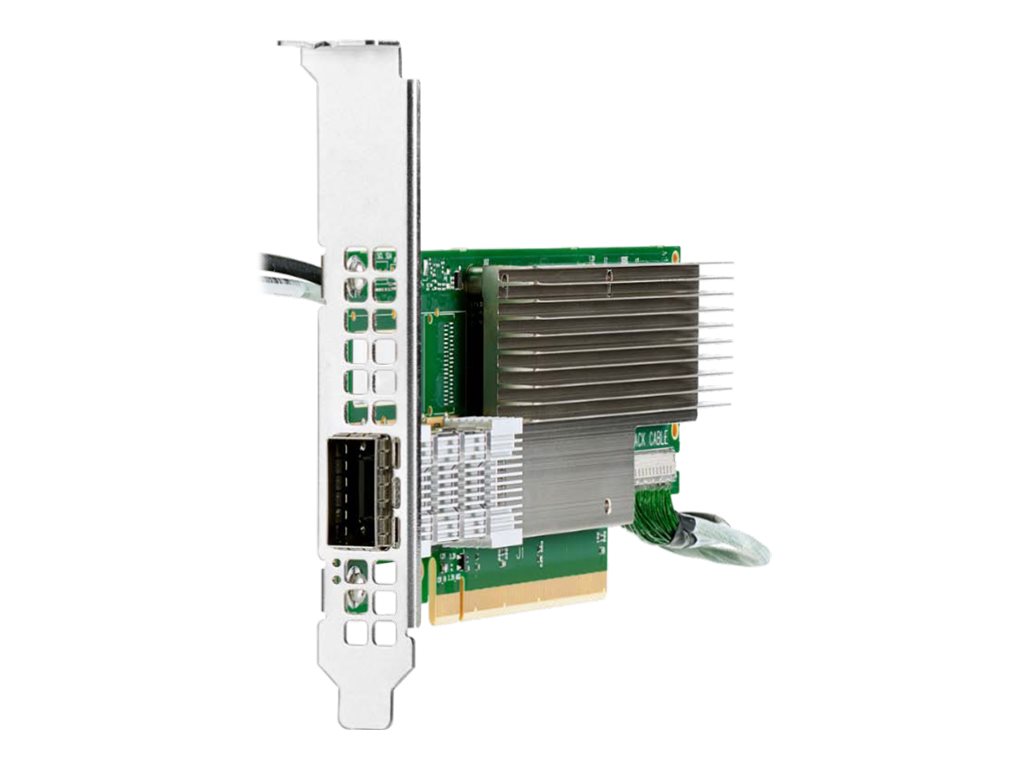

HPE HDR InfiniBand adapters are designed for customers who need low latency and high bandwidth InfiniBand interconnect in their high performance computing (HPC) systems. The adapters coupled with HDR switches via HDR splitter cables provide simplified fabrics, requiring less equipment while achieving the same performances as the previous InfiniBand generation.
Nätverk
| Portar | 200Gb Ethernet / 200Gb Infiniband QSFP28 x 1 |
|---|
| Anslutningsteknik | Kabelansluten |
|---|
| Datalänkprotokoll | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand |
|---|
| Dataöverföringshastighet | 200 Gbps |
|---|
| Nätverks/transportprotokoll | TCP/IP, UDP/IP, iSCSI |
|---|
| Funktioner | Auto-negotiation, stöd för MPLS, VLAN-stöd, InfiniBand QDR Link-stöd, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), stöd för InfiniBand DDR Link, Jumbo Frames-support, PXE-support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI-support, InfiniBand FDR Link-support, stockningskontroll, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Stöd för InfiniBand EDR-länk, TLP Processing Hint (TPH), InfiniBand SDR Link-support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), användarlägesregistrering och ommappning av minne (UMR), personsökning på begäran (ODP), Meddelandesignalerade avbrott (MSI), InfiniBand HDR100 länkstöd |
|---|
| Standarder som följs | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by |
|---|
Diverse
| Standarder som följs | CISPR 22 klass A, EN55024, ICES-003 klass A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1 |
|---|
Kompatibilitetsinformation
| Designat för | HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus
HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka BAse Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry |
|---|
