Produktbeskrivning

Are you looking for extremely high bandwidth and very low latency communications for your HPE ProLiant XL and HPE ProLiant DL Gen10 server families?

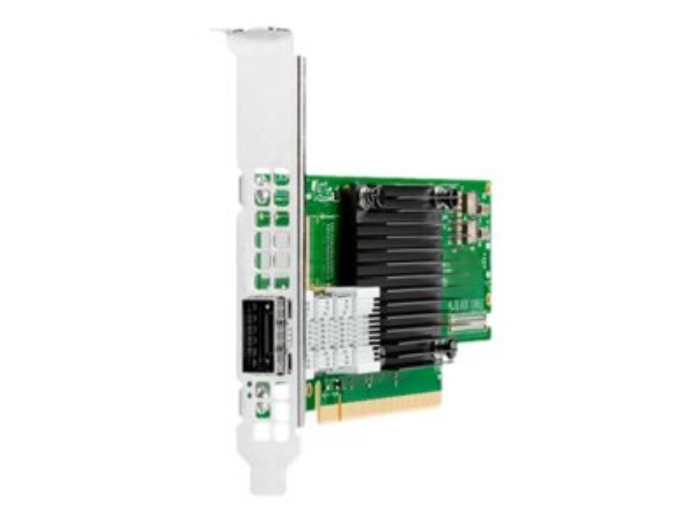

The HPE HDR InfiniBand adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and HPE ProLiant DL Gen10 servers in the data center. The HPE InfiniBand HDR/HDR100 adapters include HPE InfiniBand HDR (200Gbps) 1-port 940QSFP56 adapter, HPE InfiniBand HDR100(100Gbps) 2-port 940QSFP56 adapter and HPE InfiniBand HDR100(100Gbps) 1-port 940QSFP56 adapter. Combined with HDR InfiniBand switches, they deliver low latency and up to 200Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.



Egenskaper

Low latency, high-bandwidth infiniBand connectivity
HPE HDR InfiniBand adapters deliver up to 200Gbps bandwidth and a sub-microsecond latency for demanding high performance computing (HPC) workloads. The HPE InfiniBand HDR100 adapters, combined with HDR switches and HDR cables, are aimed at simplified infrastructure by reducing the number of required switches for a given 100Gbps InfiniBand fabric. HPE HDR InfiniBand adapters are supported on the HPE ProLiant XL and HPE ProLiant DL Gen10 servers.

Offloading mechanisms
HPE HDR InfiniBand adapters include multiple offload engines that speed up communications by delivering a low CPU overhead for increasing throughput. HPE HDR InfiniBand adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.



Teknisk specifikation

Typ av enhet	Nätverksadapter
Formfaktor	Instickskort - låg profil
Gränssnittstyp (buss)	PCI Express 4.0 x16
Version av PCI-specifikation	PCIe 1.1, PCIe 2.0, PCIe 3.0

Portar	100Gb Ethernet / 100Gb Infiniband QSFP28 x 1
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand
Dataöverföringshastighet	100 Gbps
Nätverks/transportprotokoll	TCP/IP, UDP/IP, iSCSI
Funktioner	Auto-negotiation, stöd för MPLS, VLAN-stöd, InfiniBand QDR Link-stöd, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), stöd för InfiniBand DDR Link, Jumbo Frames-support, PXE-support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI-support, InfiniBand FDR Link-support, stockningskontroll, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Stöd för InfiniBand EDR-länk, TLP Processing Hint (TPH), InfiniBand SDR Link-support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), användarlägesregistrering och ommappning av minne (UMR), personsökning på begäran (ODP), Meddelandesignalerade avbrott (MSI), InfiniBand HDR100 länkstöd
Standarder som följs	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by

Processor	1 x Mellanox ConnectX-6

Gränssnitt	1 x 100Gb Ethernet / 100Gb Infiniband - QSFP28

Standarder som följs	CISPR 22 klass A, EN55024, ICES-003 klass A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1

Energiförbrukning vid drift	15.6 Watt

Operativsystem erfordras	FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS

Service och support	Begränsad garanti - delar - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)

Designat för

HPE Apollo 20 2U Node, 4200 Gen10, 4510 Gen10 HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 HPE ProLiant DL325 Gen10 Base, DL325 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice
