Egenskaper

Network bottlenecks can hinder performance in compute

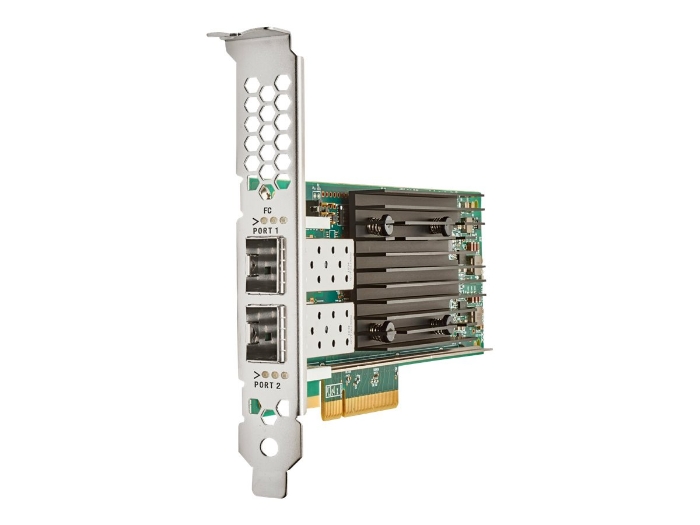

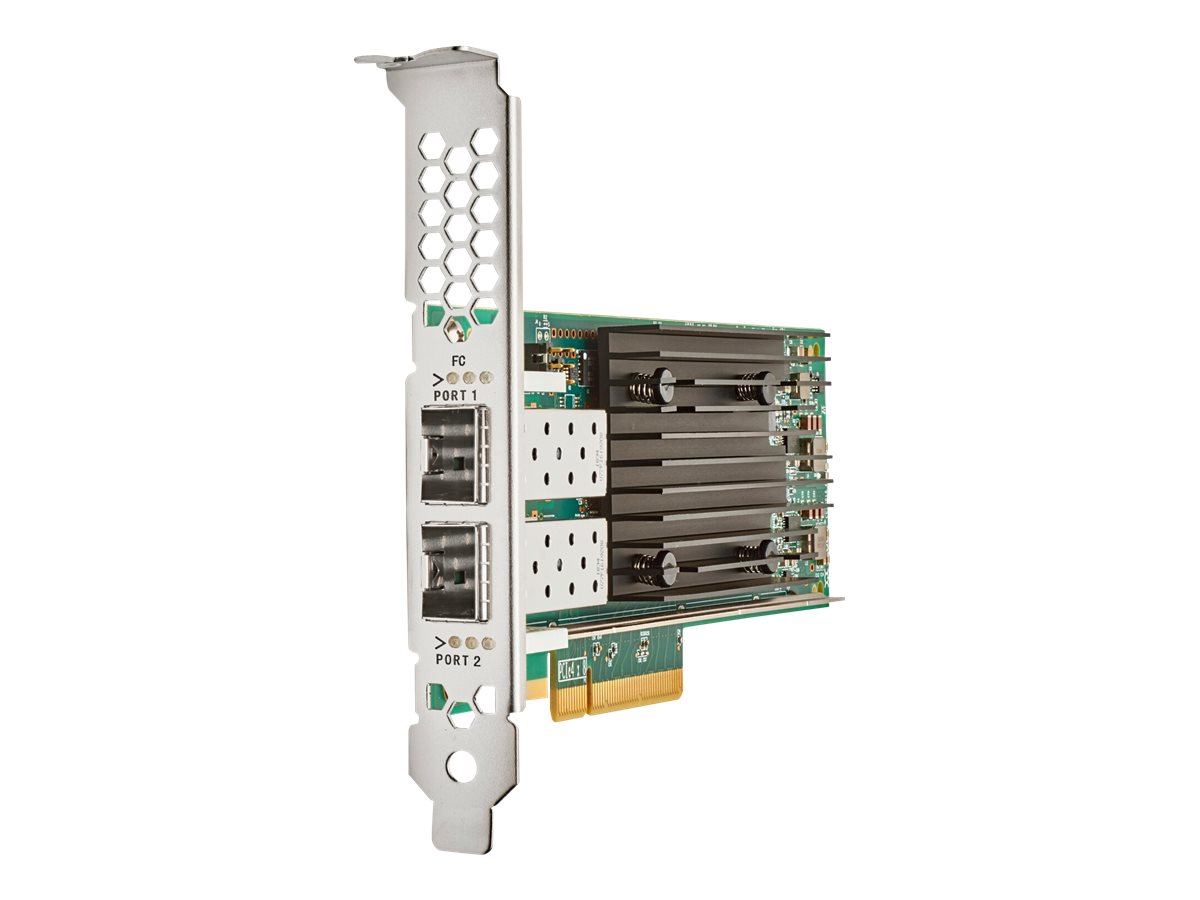

The HPE SN1700Q 64Gb Fiber Channel Host Bus Adapter is a high performing network component, designed to complement updated/outdated compute deployments, especially if the workload relies on substantial I/O requirements like databases or virtual servers. Speed up applications with more modern, high-performance HBAs as your deployment needs change. This model can handle peak workload I/O spikes better, both now and in the future.

Network bottlenecks can negate performance in storage
HPE SN1700Q 64 Gb Fiber Channel Host Bus Adapters can improve storage performance by preventing solid state storage arrays from overrunning slower networks. Get more from servers by preventing bottlenecked storage networks.

Flexible performance-tiered compatibility provides investment protection
Embrace flexibility in mixed performance environments with the HPE SN1700Q 64Gb Fiber Channel Host Bus Adapter, allowing you to budget or model a phased upgrade approach.

Highly available storage arrays require redundant networking data-paths
Disk arrays like the HPE Alletra Storage Array have the highest availability at 100%. Match the array with a redundant network path design to reduce the probability of network failures impacting the storage array's availability. Best practices dual networking path requirement is fully implemented when two sets of all networking components are present: HBAs, switches, cables, and SFPs (optics).



Teknisk specifikation

Typ av enhet	Värdbussadapter
Formfaktor	Instickskort - låg profil
Gränssnittstyp (buss)	PCI Express 4.0 x8
Version av PCI-specifikation	PCIe 4.0

Portar	64Gb Fibre Channel (Short Wave) x 2
Anslutningsteknik	Kabelansluten
Typ av kablage	Fibre Channel
Datalänkprotokoll	64Gb Fibre Channel (Short Wave)
Prestanda	Throughput (full duplex line rate per port): 12800 MBps Samtidiga inloggningar: 2048 Aktiva utväxlingar (per port): 2048
Funktioner	Fabric-Device Management Interface (FDMI), QLogic StorFusion, NVMe over Fibre Channel Ready, Root of Trust (RoT), firmware-integritetsskydd

Gränssnitt	2 x 64Gb Fibre Channel (Short Wave) - SFP+

Inkluderade tillbehör	SFP+ SR-transceiver, standardkonsol
Standarder som följs	TUV, EN 61000-3-2, EN 61000-3-3, EN55024, CB, ICES-003 klass A, CSA C22.2, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, VCCI Class A, OM4, OM3, EN 55032, CISPR 32 Class A, AS/NZS Class A, KC-RRA Class A, UKCA, FCC CFR 47 Part 15 Class A, IEC 62368 tredje utgåvan, IEC 62368 andra utgåvan, EN 62368 tredje utgåvan, EN 62368 andra utgåvan, BS DoC
Förpackningstyp	Parti

Energiförbrukning vid drift	11 Watt

Bredd	1.244 cm
Djup	16.764 cm
Höjd	6.934 cm
Vikt	125 g

Service och support	Begränsad garanti - delar - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)

Designat för	HPE Alletra 4120
