Produktbeskrivning

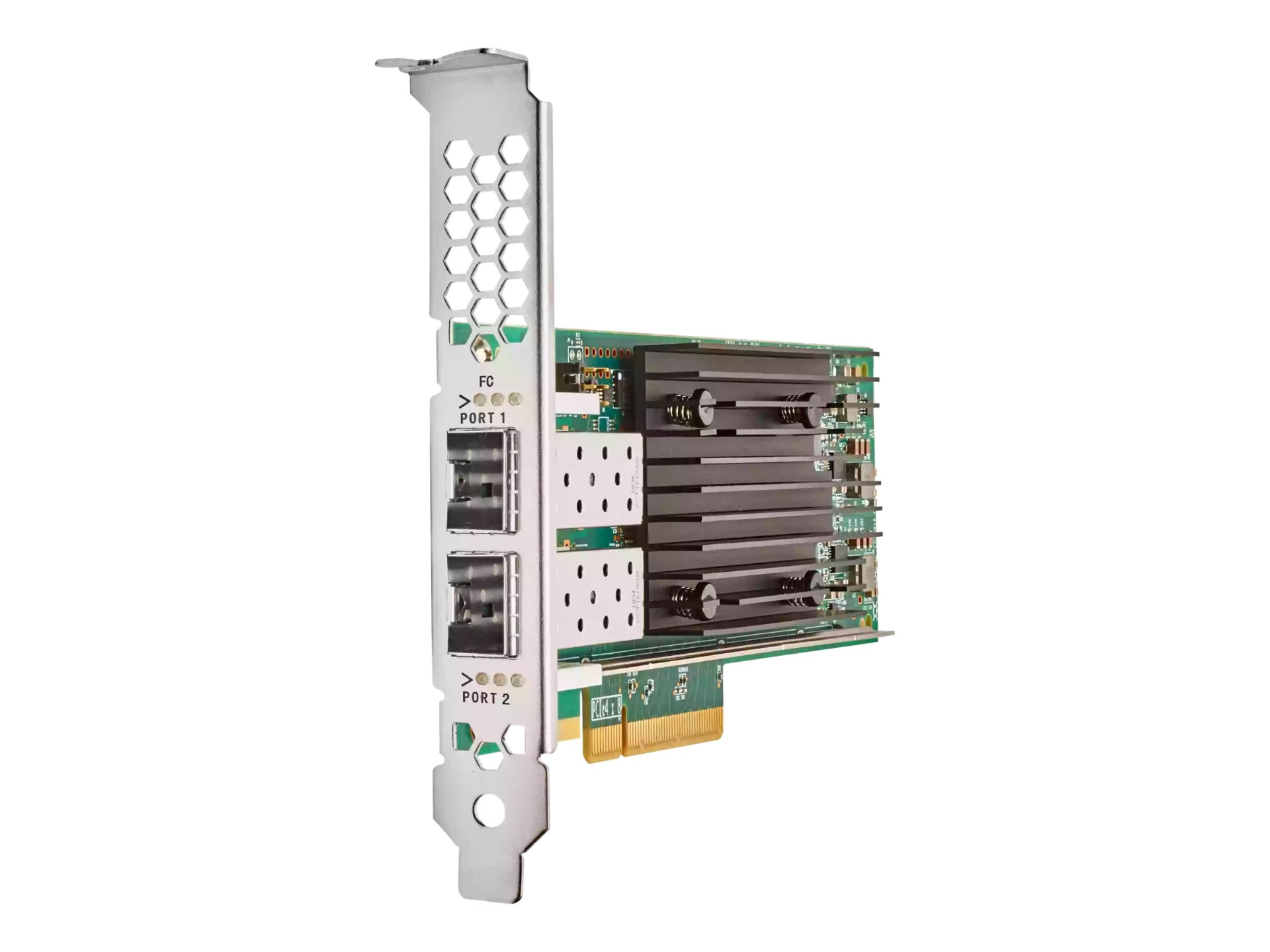

HPE SN1610Q 32Gb Fiber Channel Host Bus Adapter offers higher bandwidth, better latency, enhanced security, and operational efficiency for 32 GFC storage area networks.
Egenskaper
● Performance of up to 2 million IOPS and 12,800 Mbps of aggregate throughput
● Higher performance with existing server investments when compared to 16 Gb FC adapters
● More data moved per watt of power consumed when compared to 16 Gb FC adapters
● Improve database transactional performance, enable faster business decisions with better data mining, and host more VMs
● Port isolation design delivers deterministic and scalable performance on each port
● Provides hardware root of trust to protect against malicious firmware downloads
Teknisk specifikation
Allmänt
| Typ av enhet | Värdbussadapter |
|---|
| Formfaktor | Instickskort - låg profil |
|---|
| Gränssnittstyp (buss) | PCI Express 4.0 x8 |
|---|
Nätverk
| Portar | 32Gb Fibre Channel x 2 |
|---|
| Anslutningsteknik | Kabelansluten |
|---|
| Typ av kablage | Fiberoptisk |
|---|
| Datalänkprotokoll | 8 Gb fiberkanal (Short Wave), 16 Gb fiberkanal (kortvåg), 32 GB Fibre Channel (kortvåg) |
|---|
| Funktioner | Auto-negotiation |
|---|
Expansion/Anslutning
| Expansionskortplatser | 2 (totalt)/ 0 (ledig) x SFP+ |
|---|
| Gränssnitt | 2 x 32Gb Fibre Channel - LC multiläge |
|---|
Diverse
| Inkluderade tillbehör | Hållare för låg version, 2 x 32Gb SFP+, standardkonsol |
|---|
Programvara / Systemkrav
| Operativsystem erfordras | VMware ESX, Red Hat Enterprise Linux 7.x, VMware ESXi 6.5, Microsoft Windows Server 2016 with Hyper-V, VMware ESXi 6.7, Microsoft Windows Server 2019 with Hyper-V, Red Hat Enterprise Linux 8.x, SUSE Linux 12.x, SUSE Linux 15.x |
|---|
Dimensioner och vikt
| Bredd | 1.234 cm |
|---|
| Djup | 16.751 cm |
|---|
| Höjd | 11.115 cm |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - delar - 3 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 55 °C |
|---|
| Luftfuktighet vid drift | 10 - 90 % (icke-kondenserade) |
|---|
Kompatibilitetsinformation
| Designat för | HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4510 Gen10
HPE ProLiant DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry, DL365 Gen10 Plus, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL385 Gen10 Plus, DL385 Gen10 Plus Entry, DX360 Gen10 Plus, ML350 Gen11 Performance 3, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL220n Gen10 Plus, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL290n Gen10 Plus, XL645d Gen10 Plus |
|---|
