Produktbeskrivning

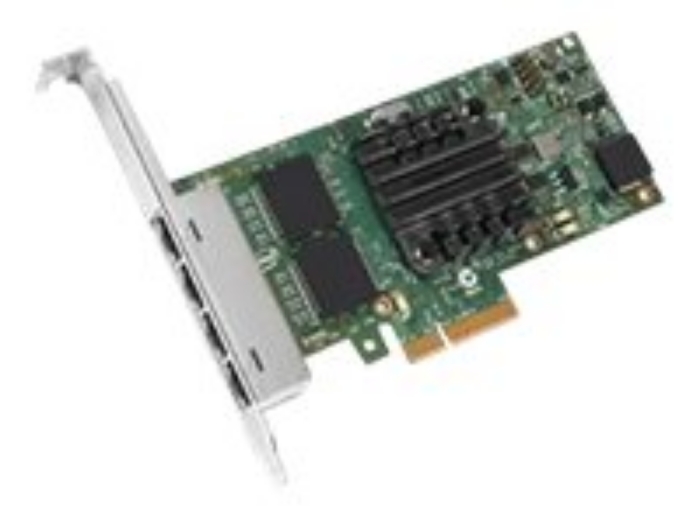

The Lenovo Intel I350-T4 4-Port Ethernet Expansion Card is a dependable and cost-effective solution to add four high-performance Ethernet ports to your PC through one PCI Express slot. The expansion card features an Intel I350 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your Think desktop or workstation. The quad-port network card makes it easy to access multiple networks and gives you four redundant, independent Gigabit Ethernet ports.



Egenskaper

● Haloen-free quad-port Gigabit Ethernet adapters with copper interface
● Innovative power management features
● High-performing bridgeless design supporting PCI Express Gen 2.1
● Single Route I/O virtualization (SR-IOV)
● Virtual Machine Device Queues (VMDq)
● Intelligent Offloads
● PCIe v2.0
● Jumbo Frame support and time-stamping



Teknisk specifikation

Typ av enhet	Nätverksadapter
Formfaktor	Instickskort
Gränssnittstyp (buss)	PCI Express 2.1
Version av PCI-specifikation	PCIe 2.0, PCIe 2.1

Portar	Gigabit Ethernet x 4
Anslutningsteknik	Kabelansluten
Typ av kablage	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet
Dataöverföringshastighet	1 Gbps
Kapacitet	Jumboramstorlek: 9500
Funktioner	Virtual Machine Device Queues (VMDq), Single Root I/O Virtualization (SR-IOV), Extended Message-Signaled Interrupts (MSI-X), Message Signaled Interrupts (MSI)
Standarder som följs	IEEE 802.3

Processor	I350 - Intel

Gränssnitt	4 x 1000Base-T - RJ-45

Standarder som följs	UL, VCCI, C-Tick, BSMI, FCC, KCC

Energiförbrukning vid drift	5 Watt

Djup	13.54 cm
Höjd	6.89 cm
Vikt	84.5 g

Emballagets bredd	14.4 cm
Emballagets djup	17.7 cm
Emballagets höjd	5.3 cm
Emballagets vikt	350 g

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	90%

Designat för

Lenovo ThinkCentre M720q Lenovo ThinkCentre M720s Lenovo ThinkCentre M720t Lenovo ThinkCentre M920q Lenovo ThinkCentre M920s Lenovo ThinkCentre M920x Lenovo ThinkStation P330 30CE, 30CF, 30CG Lenovo ThinkStation P330 (2nd Gen) Lenovo ThinkStation P410 30B2, 30B3 Lenovo ThinkStation P510 30B4, 30B5 Lenovo ThinkStation P520 30BE, 30BF, 30BQ, 30DC Lenovo ThinkStation P710 30B6, 30B7 Lenovo ThinkStation P720 30BA, 30BB, 30BU Lenovo ThinkStation P910 30B8, 30B9 Lenovo ThinkStation P920 30BC, 30BD, 30BV
