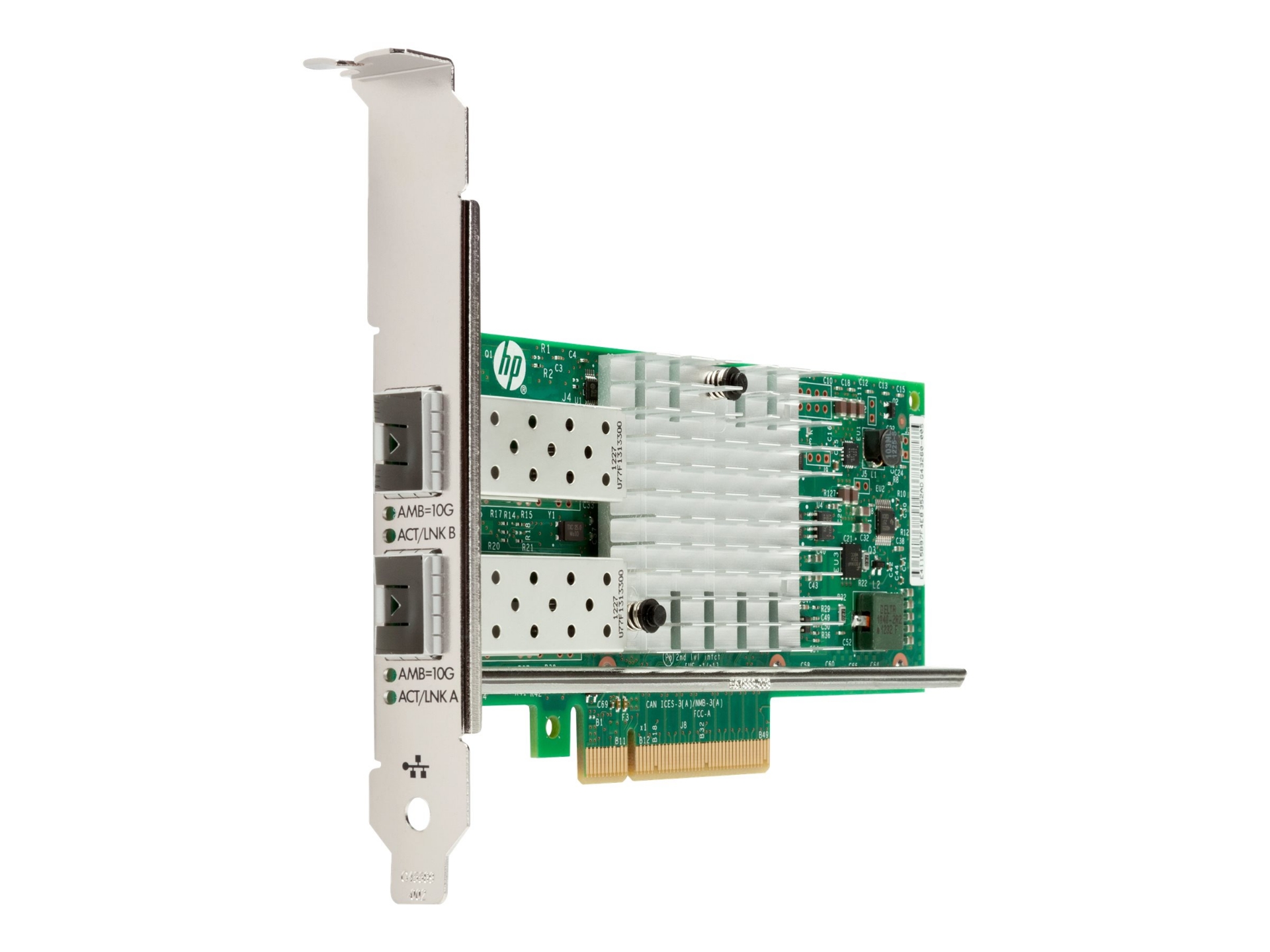

The Intel Ethernet adapter X710 addresses the demanding needs of an agile data center by providing incredible features for both server and network virtualization, flexibility for LAN and SAN networks, and proven, reliable performance. These adapters are the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for telecommunications, cloud, and enterprise IT network solutions.



Egenskaper

Greater intelligence and performance for NFV
A combination of hardware and software acceleration features, enable customizable packet filtering. The acceleration features support advanced packet forwarding and high efficient packet processing.

Advanced traffic steering
An advanced traffic steering capability is built into the adapter. It consists of a large number of flow affinity filters that direct receive packets by their flows to queues for classification, load balancing, and matching between flows and CPU cores. It reduces latency for cloud applications like memcached.

Enhanced network virtualization overlays
Network virtualization has changed the way networking is done in the data center, delivering accelerations across a wide range of tunneling methods.



Teknisk specifikation

Typ av enhet	Nätverksadapter
Formfaktor	Instickskort
Gränssnittstyp (buss)	PCI Express 3.0 x8

Portar	10 Gigabit SFP+ x 2
Anslutningsteknik	Kabelansluten
Typ av kablage	Ethernet 10GBase-SR
Datalänkprotokoll	Gigabit Ethernet, 10 Gigabit Ethernet
Dataöverföringshastighet	10 Gbps
Statusindikatorer	Portöverföringshastighet, länk/akvititet

Gränssnitt	2 x 10Gb Ethernet - SFP+

Standarder som följs	FCC Klass B-certifierade, UL, VCCI, C-Tick, BSMI, ICES-003, KCC

Energiförbrukning vid drift	4.3 Watt

Bredd	16.7 cm
Höjd	6.9 cm

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C

Designat för	HP Workstation Z2 G4, Z2 G5, Z4 G4, Z6 G4, Z8 G4
