Produktbeskrivning

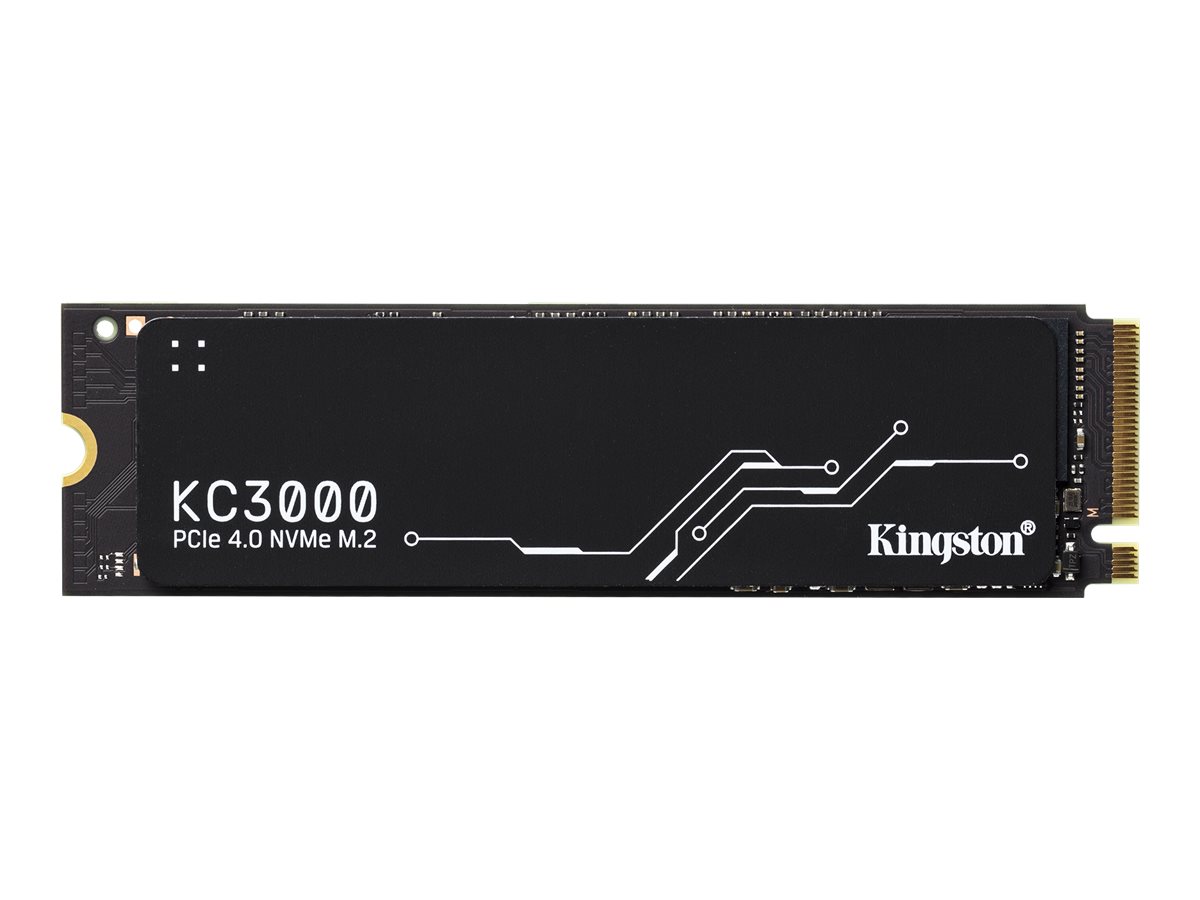

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the Gen 4x4 NVMe controller and 3D TLC NAND. Adjust the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require extremely fast speeds.

The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and faster loading times.



Egenskaper

PCIe 4.0 NVMe Technology
Master intensive applications with high read/write speeds.

Store more
Improve and manage storage with high capacity.

Greater flexibility
Compact M.2 design fits easily into small-form-factor (SFF) systems, desktops and laptop PCs.

Low profile graphene aluminum heat spreader
Exceptional thermal dissipation keeps your drive cool with maximum performance.



Teknisk specifikation

Typ av enhet	SSD-enhet - inbyggd
Kapacitet	512 GB
NAND-flashminnestyp	3D triple-level cell (TLC)
Formfaktor	M.2 2280
Gränssnitt	PCIe 4.0 (NVMe)
Egenskaper	NVM Express (NVMe), Phison E18-kontroll
Bredd	22 mm
Djup	80 mm
Höjd	2.21 mm
Vikt	7 g

SSD-hållbarhet	400 TB
Intern datafrekvens	7000 MBps (läs)/ 3900 MBps (skriv)
4 KB Random Read	450000 IOPS
4 KB Random Write	900000 IOPS

MTBF (genomsnittstid mellan fel)	1,800,000 timmar

Gränssnitt	1 x PCI snabb-4.0 (NVMe) - M.2 Card
Kompatibelt fack	M.2 2280

Strömkonsumtion	5 mW (inaktiv) 0.34 Watt (genomsnitt) 2.7 Watt (läs) 4.1 Watt (skriv)

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	70 °C
Min temperatur vid förvaring	-40 °C
Max temperatur vid förvaring	85 °C
Vibrationstolerans (vid drift)	2.17 g @ 7-800 Hz
Vibrationstolerans (i vila)	20 g @ 20-1000 Hz

Designat för	Intel Next Unit of Computing 12 Pro Kit - NUC12WSKi5
