Produktbeskrivning

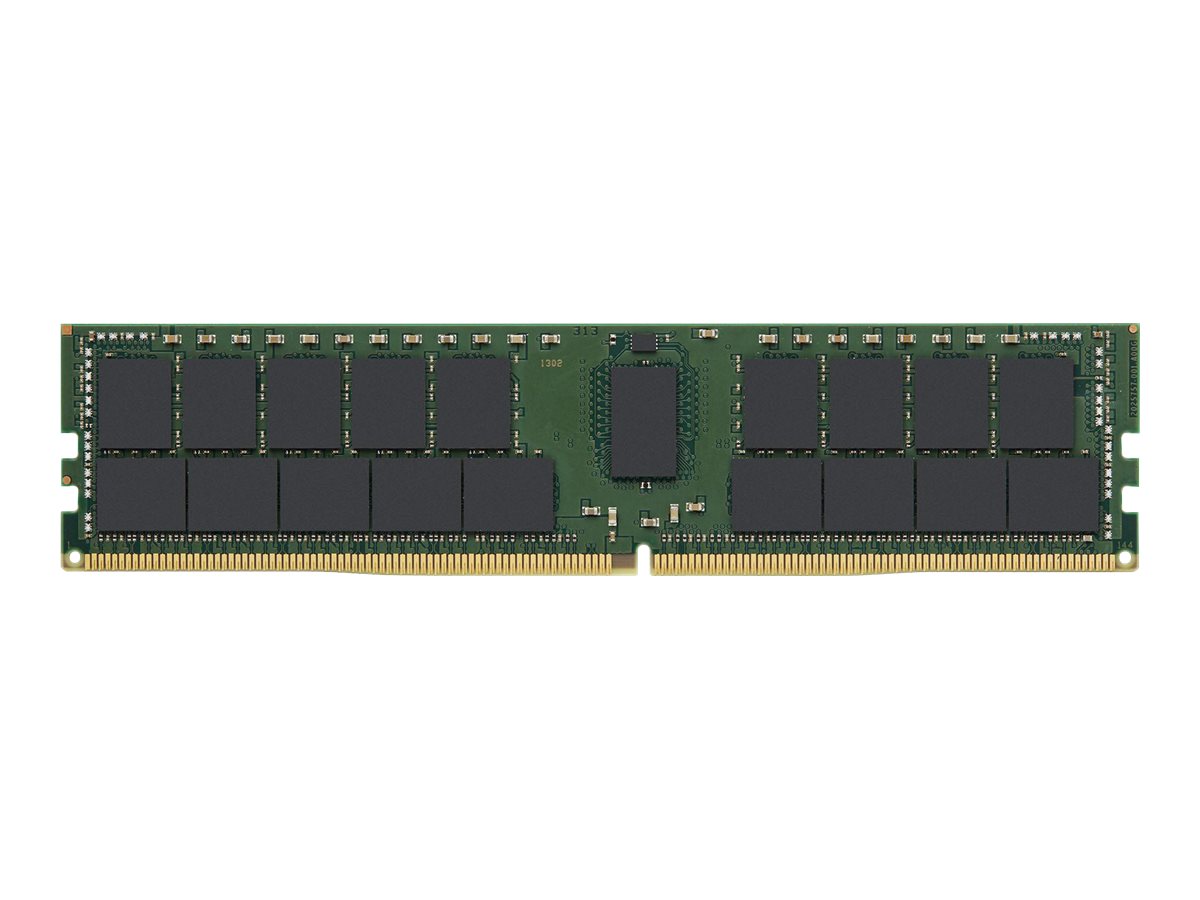

Kingston's KSM32RD4/32HDR is a 4G x 72-bit DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered with parity, 2R x 4, ECC, memory module, based on thirty-six 2G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2 V. Each 288-pin DIMM uses gold contact fingers.
Egenskaper
● Functionality and operations comply with the DDR4 SDRAM datasheet
● Bi-directional differential data strobe
● Supports ECC error correction and detection
● Temperature sensor with integrated SPD
● This product is in compliance with the RoHS directive
● Per DRAM addressability is supported
● Write CRC is supported at all speed grades
Teknisk specifikation
Allmänt
| Kapacitet | 32 GB |
|---|
| Uppgraderingstyp | Generisk |
|---|
| Bredd | 133 mm |
|---|
| Höjd | 31.3 mm |
|---|
Minne
| Typ | DRAM minnesmodul |
|---|
| Teknik | DDR4 SDRAM |
|---|
| Formfaktor | DIMM 288-pin |
|---|
| Höjd modul (tum) | 1.23 |
|---|
| Hastighet | 3200 MHz (PC4-25600) |
|---|
| Åtkomsttidstiming | CL22 (22-22-22) |
|---|
| Data Integrity Check | ECC |
|---|
| Egenskaper | Temperaturövervakning, dubbla rader, On-Die Termination (ODT), Serial Presence Detect (SPD), sexton bankar, Cyclic Redundancy Check (CRC) datastöd, registrerad med paritet |
|---|
| Modulkonfiguration | 4096 x 72 |
|---|
| Chips-organisering | 1024 x 4 |
|---|
| Spänning | 1.2 V |
|---|
| Plätering | Guld |
|---|
Diverse
| Standarder som följs | RoHS, JEDEC |
|---|
Tillverkarens garanti
| Service och support | Begränsad livstidsgaranti (Ryssland - 10 år) |
|---|
