Produktbeskrivning

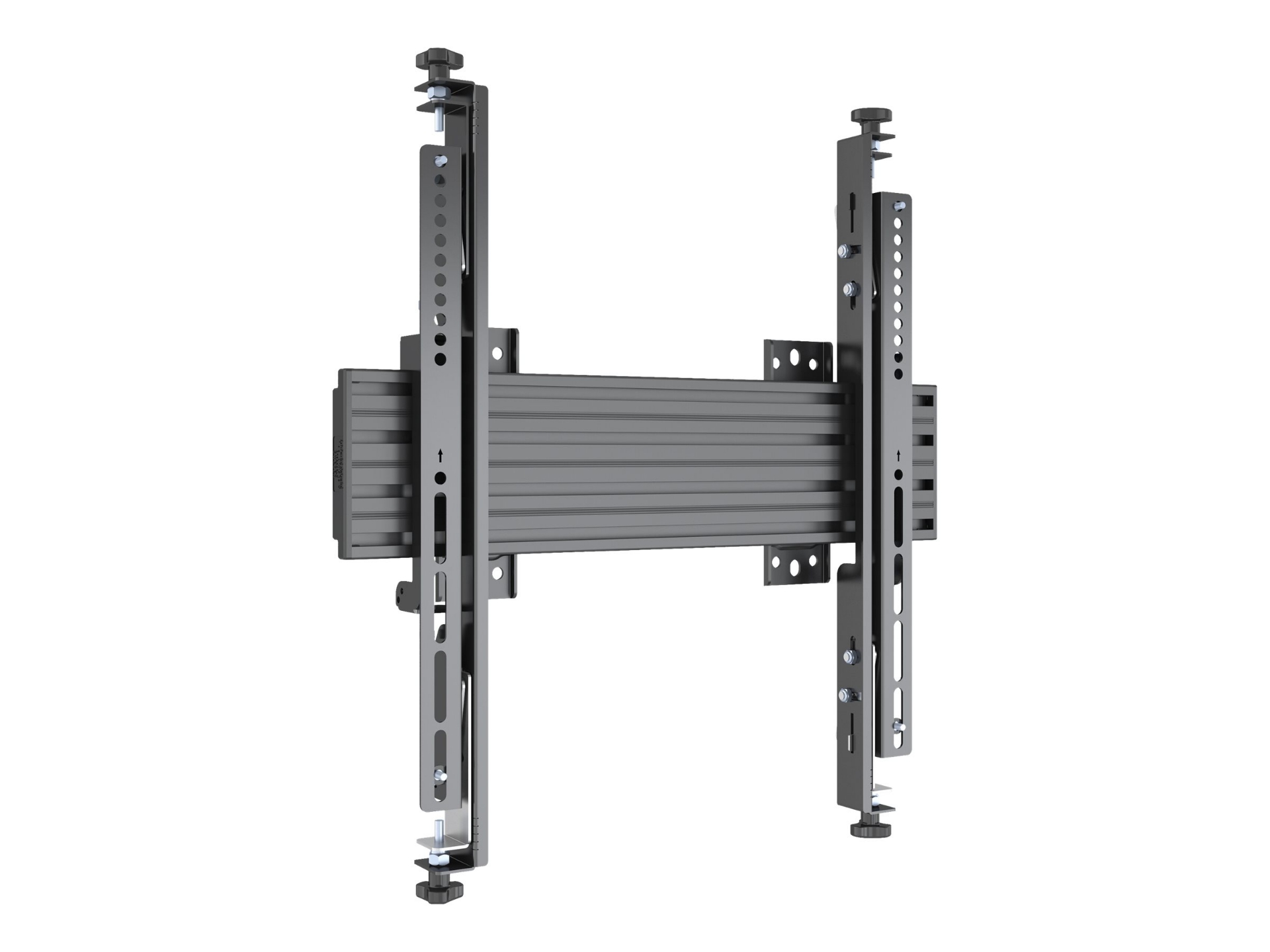

The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers Multibrackets created a range with close to unlimited flexibility. This model the M Wallmount Pro MBW1U 400 Micro Adjustable is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

With the built-in fine tune adjustments each of the M Wallmount Pro MBW1U 400 Micro Adjustable can be adjusted individually to match "its neighboring screens". With its built in simple to reach knobs, the screens can be adjusted in depth, side and height. What before could take hours for an installer to measure and re install, is fixed in a matter of minutes. Truly an installers dream come true.

The Micro adjustable wallmounts also creates easy-access to a display to quick and safe serviceability for sensitive screens with mm precision. This is often one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall.



Teknisk specifikation

Bredd	16 cm
Djup	10 cm
Höjd	49.5 cm
Vikt	5.3 kg
Material	Plast, aluminium, stål
Färg	Svart
Förpackningens innehåll	Monteringssats

Typ	Monteringssats
Monteringskomponenter	2 väggplattor, 2 justerbara armar, räls, 2 ändkapslar
Rekommenderad användning	LCD-display
Placering/Montering	Väggmonterbar
VESA-infästningsgränssnitt	100 x 100 mm, 200 x 200 mm, 400 x 400 mm, 300 x 300 mm
Kabelhantering	Inbyggd kabelhantering
Rekommenderad TV-storlek	32"-65"
Svängtapp	-4° till 4°
Justeringar	Höjd, horisontellt, djup
Maxlast	50 kg
Ytskikt	Pulverlackerad
Detaljerad information	Stående orientering, liggande orientering

Emballagets mått (BxDxH) / vikt	50 cm x 16.5 cm x 10.5 cm / 5.5 kg

Service och support	Begränsad garanti - 5 år
