Produktbeskrivning

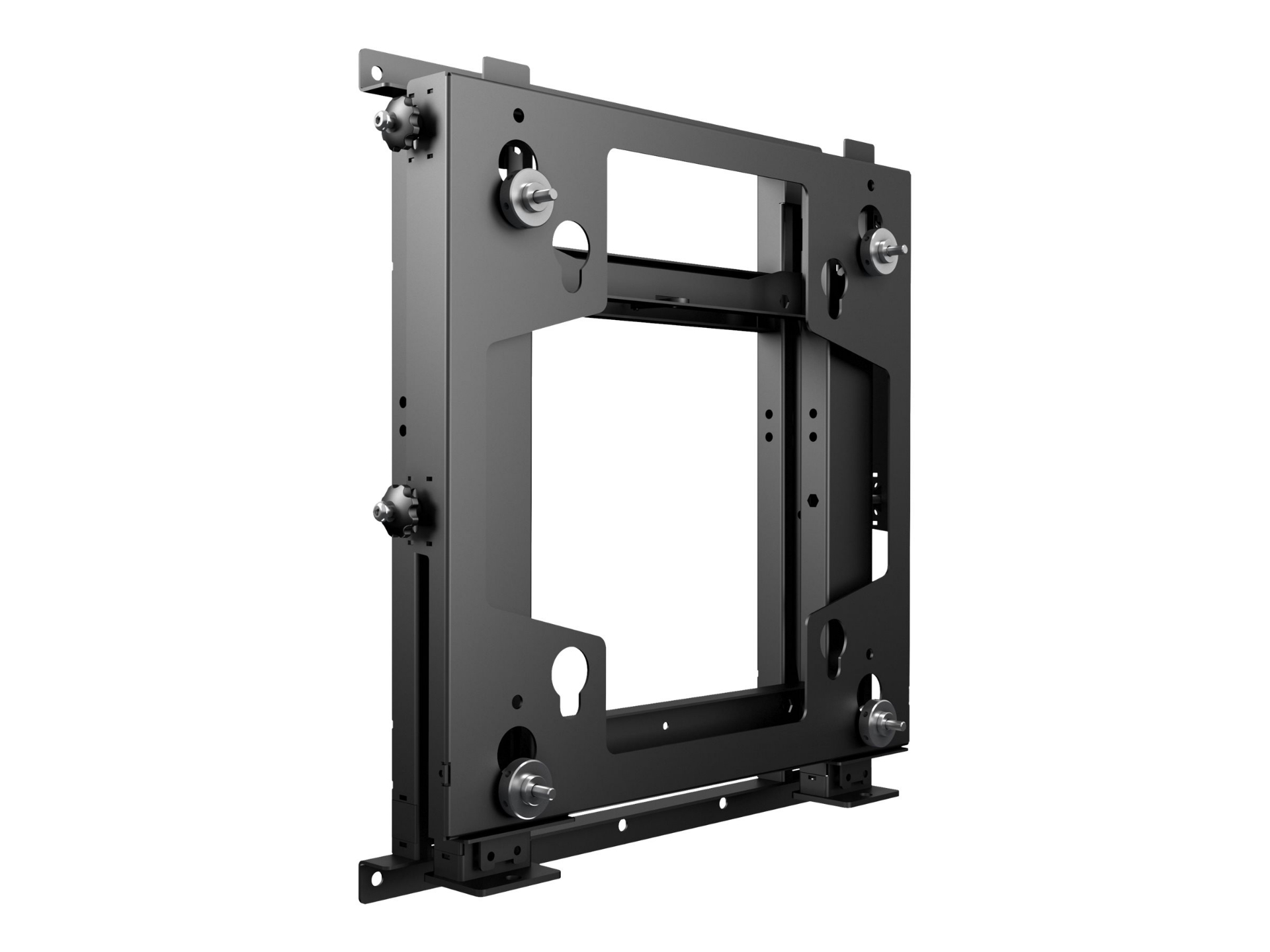

The M Public Video Wall Mount Push Max 90kg especially made for large displays and it might just be one of the markets most innovative and easy to install video wall mounts available. With numerous post installation possibilities and a tailored pantograph alignment system this might be the most easy to use, yet most powerful video wall mount system you have ever seen.

With the market for Video Wall installations growing at a fantastic pace, the need for a high quality, affordable and installer friendly mounting equipment has become in the need by many. The M Public Video Wall Mount Push HD is a video a wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. Making it an installers dream.



Egenskaper

Easy-access to your after-service
The "Pop out" feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Simply push against the screen to release the lock, then the screen will pop out, you do not need to remove any other screens to access a center screen for maintenance or when placed in recessed areas. The pop out feature is handled by its scissor arm construction expanding out. Of course the screen is as easily pushed back into place after maintenance is finished.

8 knobs making detailed adjustments an ease
With the built in fine tune adjustments each of the M Video Wall Push Max 90kg can be adjusted individually to match "its neighboring screens". By 8 knobs the screens can be adjusted in depth, side and height. What before could take hours for an installer to measure and re install, is now fixed in a matter of minutes. Truly an installers dream come true.

Super heavy duty construction
The M Video Wall Push Max 90kg is an iron structure with epoxy painting, holding screens up to 90kg in "pop outed" position.



Teknisk specifikation

Bredd	76 cm
Höjd	46 cm
Vikt	14 kg
Material	Järn
Färg	Svart

Typ	Konsol
Rekommenderad användning	Platt panel
Placering/Montering	Väggmonterbar
VESA-infästningsgränssnitt	200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 300 x 200 mm, 300 x 300 mm
Kabelhantering	Inbyggd kabelhantering
Rekommenderad TV-storlek	50"-95"
Justeringar	Djup
Maxlast	150 kg

Service och support	Begränsad garanti - 2 år
