Produktbeskrivning

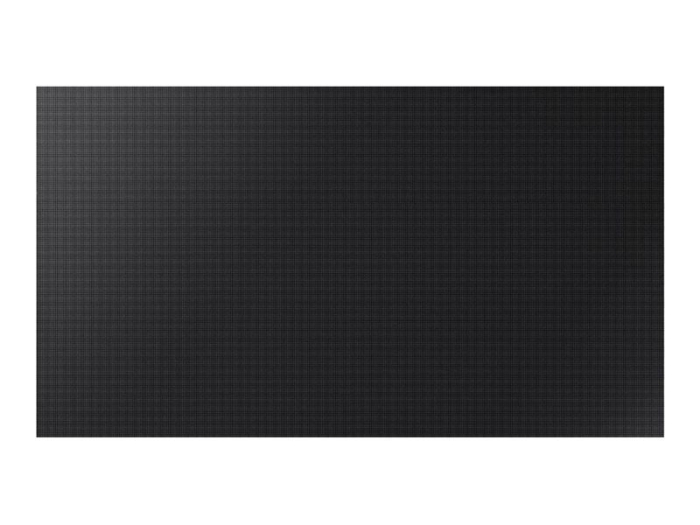

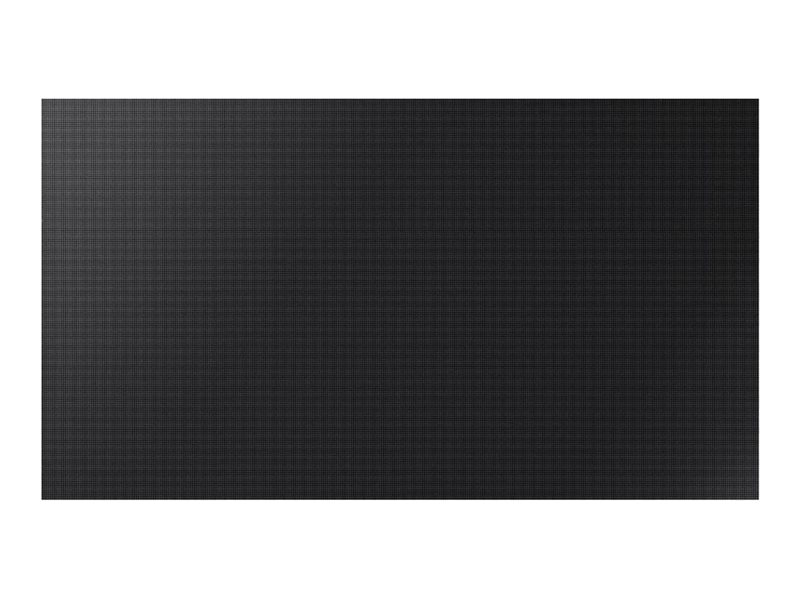

LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung's IFR series combines LED picture quality, flexible design options and efficient operation in any environment.



Egenskaper

Clearly refined visuals
LED HDR turns any content into HDR-level without requiring special metadata. Dynamic Peaking and Inverse Tone Mapping enhance content to optimum brightness levels while avoiding glare, and Color Mapping ensures an accurate color presentation.

Pin-sharp clarity, bright or dark
Discover the true beauty no matter how bright or dark a scene is. The IFR series supports HDR10+ which optimizes brightness and contrast ratio scene-by-scene to ensure each frame looks exactly as intended.

HDR experience in large scale
With Multi-link HDR technology, IFR series delivers more impactful content than ever before, providing HDR quality content up to 8K resolution. Multi-link HDR turns any content into HDR-level and is a flexible solution that can be applied to various layouts and screen sizes with less cabling.

Screen uniformity all the time
On-site PC and mobile calibration combined with multi-step factory calibration tunes the whole screen of LED displays to uniform brightness and color. Color Expert LED Mobile provides a quick and easy calibration, requiring nothing more than a mobile phone and a Wi-Fi connection.



Teknisk specifikation

Typ av produkt	LED display unit
Kommersiell användning	Ja - digital skyltning
Serie	IFR Series
HDR-förberedd	Ja
HDR-format	HDR10+
HDR-teknologi	LED HDR, Multi-link HDR
TV-tuner	Ingen mottagare
TV-mottagaravkänning	Nej
Design	Flexibel design
Dimensioner	Visningsenhet
Bredd	96 cm
Djup	7.95 cm
Höjd	54 cm
Vikt	12.4 kg

Rampris och förhöjningsteknologi	7680 Hz Refresh Rate
Färgtemperatur	2800 - 10000K
Bildkontrastförhållande	12000:1
Ljusstyrka	800 cd/m²
Bildvinkel	160 grader
Bildvinkel (vertikal)	160 grader
Egenskaper	16-bitars färgbehandling

Pixelavstånd	1.5 mm
Pixelkonfiguration	1 röd, 1 grön, 1 blå
LED-typ	SMD
Upplösning	640 x 360
LED-livstid	100.000 hours
Hantering	Framsida
Modulkonfiguration (per skåp)	4x3

Standarder som följs	EMC Class A, IP20, Safety 60950-1, Safety 62368-1

Nätdel	Nätaggregat
Inspänning	AC 100-240 V (50/60 Hz)
Strömförbrukning för videoväggens visningsenhet (max)	360 W
Strömförbrukning för videoväggens visningsenhet (normal)	117 W
Strömförbrukning för videovägg (max)	694 W/?
Strömförbrukning för videovägg (normal)	226 W/?
Funktioner	Power Redundancy

Service och support	Begränsad garanti - 3 år

Bredd (brutto)	111.9 cm
Djup (brutto)	20.6 cm
Höjd (brutto)	69.9 cm
Vikt (brutto)	17.5 kg

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	10 - 80% RH
